General Standard Assembled Thermocouples and RTDs
Home / Product / Thermocouples、RTDs / General Type Thermocouples、RTDs / General Standard Assembled Thermocouples and RTDs

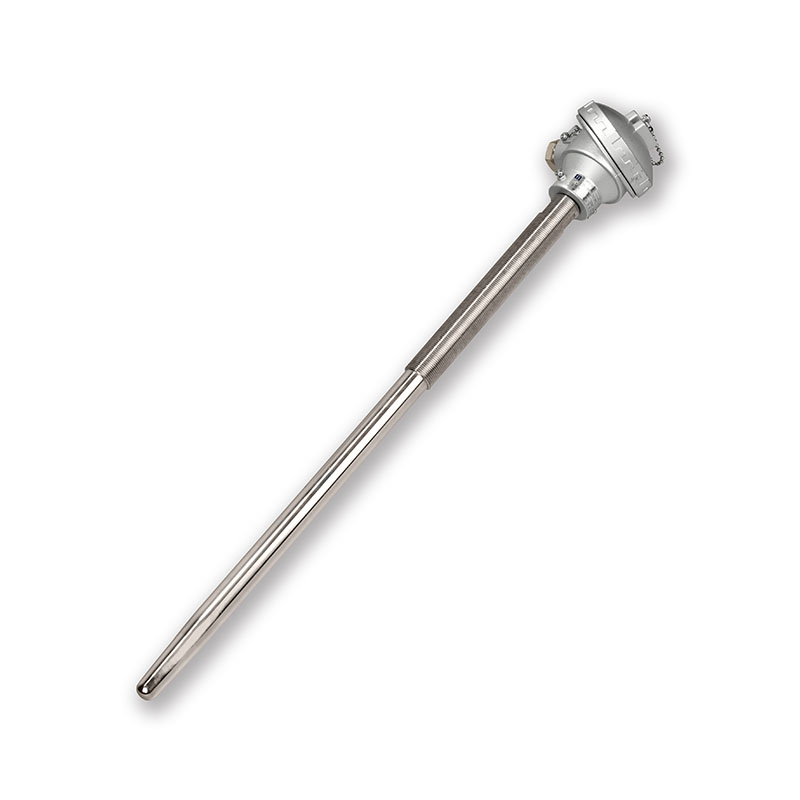

  • General Standard Assembled Thermocouples and RTDs
  • General Standard Assembled Thermocouples and RTDs
  • General Standard Assembled Thermocouples and RTDs
  • General Standard Assembled Thermocouples and RTDs
  • Technical Specifications
Technical Parameters
1)Measuring Range & Tolerance
Model Type Tube Dia.
(mm)
Tube Material Measuring
Range(℃)
Class I Tolerance Class II Tolerance
Nicrosil-Nisil N φ16 06Cr18Ni11Ti -40~950 ±1.5  or±0.4%|t| ±2.5  or±0.75%|t|
1Cr25Ni20 0~1000
GH3030 0~1100
NiCr-NiSi K OR1300
K1230
0~1300
Φ16,Φ20 3YC52 0~1200
High-alumina ceramic 0~1300
NiCr-CuNi E Φ16 06Cr18Ni11Ti -40~900
Fe-CuNi J -40~750
Cu-CuNi T Φ16 06Cr18Ni11Ti -40~350 ±0.5 or±0.4%|t ±1  or±0.75%|t|
PtRh10-Pt S Φ16 High-alumina ceramic 0~1300 ±1 or±(1+0.003t-1100) ±1.5 or±0.25%|t
PtRh13-Pt R φ20 Corundum ceramic 0~1300
PtRh30-PtRh6 B φ25 Corundum ceramic 0~1600 ———

Model Type Tube Dia.
(mm)
Tube Material Measuring
Range(℃)
Accuracy Permissible Current
Pt RTD Pt100 Φ12 06Cr18Ni11Ti -200~420 A:±(0.15+0.002|t|);
B:±(0.30+0.005|t|)
≤5mA
Cu RTD Cu50 Φ16 OCr18Ni12Mo2Ti -50~100 ±(0.30+0.006|t|) ≤10mA

2) Fixing Device Type & Insertion Depth
Application Connection
Type
Tube Type Nominal Pressure
(MPa)
Thermal
Response t0.5
(s)
Insertion Depth(mm)
RTD
Base-metal TC
Fixed threaded
taper
Solid-Drilled 30  <90 TC: 75~1000
RTD: 150~1000
Fixed thread φ16 metal tube

φ16 reduced dia
tube
10  150~2000
Fixed flange Determined by flange
type
No fixing/
movable flange
Ambient pressure
RTD Fixed thread φ12 metal tube

φ12reduced  dia
tube
10  150~1000
Fixed flange Determined by flange
type
No fixing/
movable flange
Ambient pressure
Precious-metal TC No fixing/
movable flange
φ16 single
ceramic tube
Ambient pressure <150 150~1000
φ20 double
ceramic tube
<240 150~2000
φ25 double
ceramic tube
<360
Base-metal TC Right-angle φ16 metal tube <90 400~1000
Note 1: @16 metal or ceramic tube available with bayonet type; t0.5 ≤ 30 s.
Note 2: Fixed flange body is carbon steel, sealing face is stainless steel.
Note 3: Movable flange material is cast iron.
Note 4: Fixed threaded taper tube for medium flow ≤ 80 m/s.
