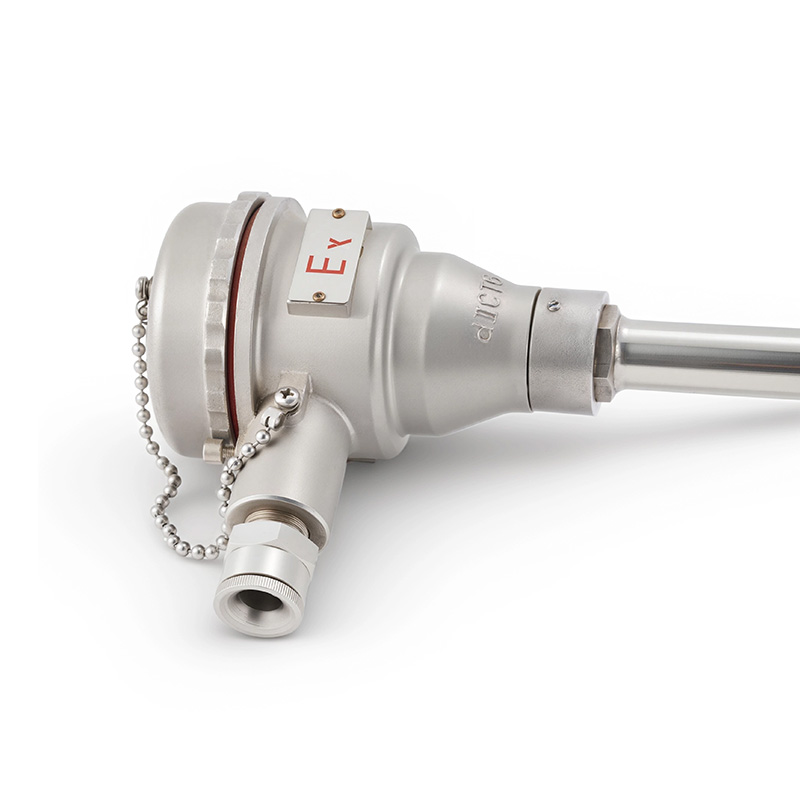

Explosion-proof, corrosion-resistant, leak-proof, and wear-resistant thermocouples and RTDs
Home / Product / Thermocouples、RTDs / Thermocouples and RTDs with Flange thermowell / Explosion-proof, corrosion-resistant, leak-proof, and wear-resistant thermocouples and RTDs
  • Explosion-proof, corrosion-resistant, leak-proof, and wear-resistant thermocouples and RTDs
  • Explosion-proof, corrosion-resistant, leak-proof, and wear-resistant thermocouples and RTDs
  • Explosion-proof, corrosion-resistant, leak-proof, and wear-resistant thermocouples and RTDs
  • Explosion-proof, corrosion-resistant, leak-proof, and wear-resistant thermocouples and RTDs
  • Technical Specifications
Technical Parameters
1) Temperature and Tolerance
Model Type Class II Range(℃) Tolerance
Nicrosil-Nisil N -40~1200 ±2.5℃ or ±0.75%|t|
NiCr-NiSi K
NiCr-CuNi E -40~900 ±2.5℃ or ±0.75%|t|
Pt Resistance Pt100 -200~500 A: ±(0.15+0.002|t|)℃;
B: ±(0.30+0.005|t|)℃

2) Model and Specification
Model Type   Range
  (℃)
Response
Time(s)
Protection Tube
Structure &Material
Specification: Total
×Insertion(mm)
Remarks
WRNK-441-dcP1□/
WRNK2-441-dcP1□
N 0~1280 T0.5≤90 Solid-Drilled structure,
corrosion/heat-resistant alloy
(Z);outer coating Ni60(N)
300×150/350×200/
450×300/500×350/
550×400/600×450/
750×600/900×750/
1150×1000/
1250×1100/
1400×1250/
1650×1500/
1750×1600/
2000×1850/
2150×2000
1. Junction box: large stainless steel box
(P1).
2. Electrical outlet: M20×1.5, NPT1/2".
3. Wear-resistant head HRC62~70,
ExdIICT6.
4. Wear head length 300, OD φ20×1.5/
φ16±1.5, other sizes optional.
5.Common flange 105(Type B),optional.
6. Element: single/double sheathed
Φ3~φ8 or assembled.
7."□"=tube material, Z or N.
WRKK-441-dcP1□/
WRKK2-441-dcP1□
K
WREK-441-dcP1□/
WREK2-441-dcP1□
E 0~800
WZPK-440-dcP1□/
WZPK2-440-dcP1□
Pt100 0~500
Note: Other specifications are available upon request.
