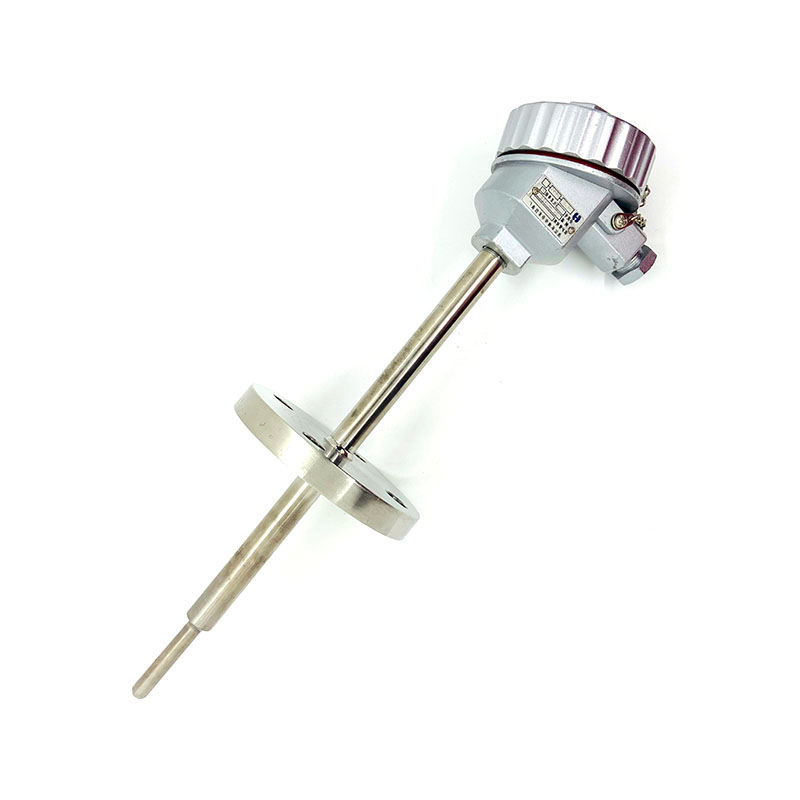

Model 442 Armored Explosion-proof type Thermocouples and RTDs
Home / Product / Thermocouples、RTDs / Thermocouples and RTDs with Flange thermowell / Model 442 Armored Explosion-proof type Thermocouples and RTDs
  • Model 442 Armored Explosion-proof type Thermocouples and RTDs
  • Model 442 Armored Explosion-proof type Thermocouples and RTDs
  • Model 442 Armored Explosion-proof type Thermocouples and RTDs
  • Model 442 Armored Explosion-proof type Thermocouples and RTDs
  • Technical Specifications
Technical Parameters
1) Temperature and Tolerance
Model Type Material Measuring Range(℃) Accuracy Class and Tolerance
Armored Element Protection Tube Class I Class II
NiCr-NiSi K 06Cr18Ni11Ti 06Cr18Ni11Ti -40~800 ±1.5 or
±0.4%|t|
±2.5 or±0.75%|t
GH30 Alloy 1Cr25Ni20 0~1000
GH30 Alloy 0~1100
3YC-52 Alloy 0~1200
NiCr-CuNi E 06Cr18Ni11Ti 06Cr18Ni11Ti Single:0~650
Double:0~550
Fe-CuNi J Single:0~600
Double:0~540
Cu-CuNi T -200~350 ±0.5 or
±0.4%|t
±1  or±0.75%|t|
Pt Resistance Pt100 06Cr18Ni11Ti 06Cr18Ni11Ti -200~420 A ±(0.15+0.002|t|)
0~500 B ±(0.30+0.005|t|)
3YC-52 Alloy 0~650
Cu Resistance Cu50 or
Cu100
06Cr18Ni11Ti -50~100 一 ±(0.30+0.006|t|)

2) Fixing Device and Insertion Depth
Fixing Device Protection Tube Nominal Pressure
(MPa)
Insertion Depth(mm)
Type End Form
Fixed Threaded
Tapered Tube
Solid-Drilled
Tube
Tapered 30  150~1000
Fixed Flanged Tapered
Tube
Depends on flange
type
75~1500
Fixed Threaded Solid-Drilled
Tube
Straight 10  150~1000
φ16 Welded
Tube
Straight
Reduced
150~2000
Fixed Flanged Solid-Drilled
Tube
Straight Depends on flange
type
150~1000
φ16 Welded
Tube
Straight
Reduced
150~2000
Floating Flange(No
Fixing)
φ16 Welded
Tube
Straight/Reduced Atmospheric pressure 150~2000
Note 1: Fixed threaded tapered tube ≤250 mm can be used for media with flow velocity up to 80 m/s.
Note 2: Insertion depth of integrated drilled tube can be freely selected within allowable range.
